What kind of doors are compatible with Wyze Lock Bolt v2?

Wyze Lock Bolt v2 is compatible with standard thickness wooden exterior doors with a single-cylinder deadbolt.

More door compatibility requirements:

  • Door type: Standard single-cylinder deadbolt on wooden exterior doors. Not for glass or sliding doors. Does not support Mortise or multipoint locks.

  • Door thickness: Requires a door thickness of 1-3/8" to 2-11/64" (35–55 mm).

  • Cross-bore (main hole) diameter required: 2-1/8" (54 mm) or 1-1/2" (38 mm).

  • Edge/latch hole (face-bore) diameter required: 1" (25 mm); latch-hole depth must be 1".

  • Backset required: 2-3/8" (60 mm) or 2-3/4" (70 mm) (deadbolt is adjustable).

  • Clearance from other hardware: Requires at least 2-9/16" (65mm) between the deadbolt center and the adjacent handle/doorknob.

  • Latch plate shape: Rectangular faceplate.

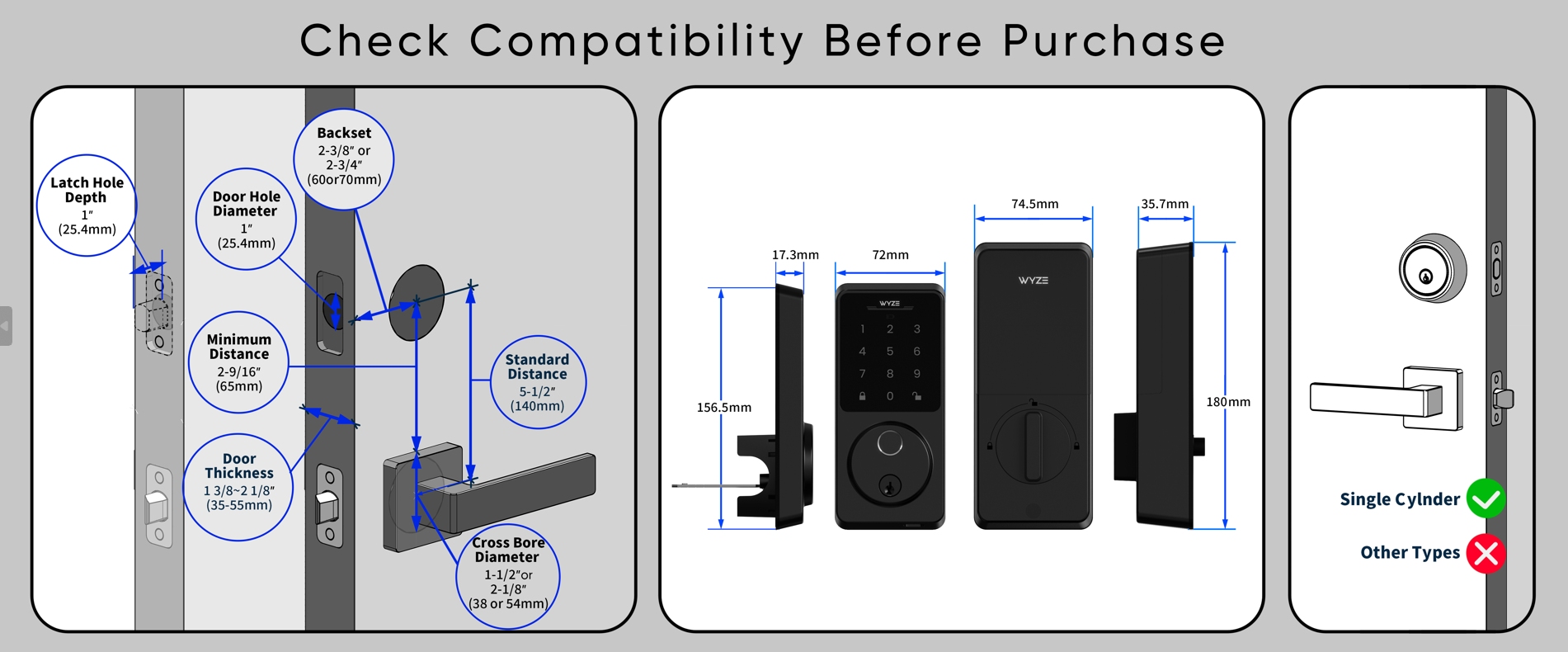

Here's a handy guide to check compatibility before purchasing.

Wyze Lock Bolt v2 Compatibility.png
