Wyze Cam Pan v3 Mounting Guide

Haven't set up your Wyze Cam Pan v3 yet? Check out Wyze Cam Pan v3 Setup Guide before installing.

You can set your Wyze Cam Pan v3 anywhere. But if you want it up higher, you'll need to mount it with the included Mounting Kit*.

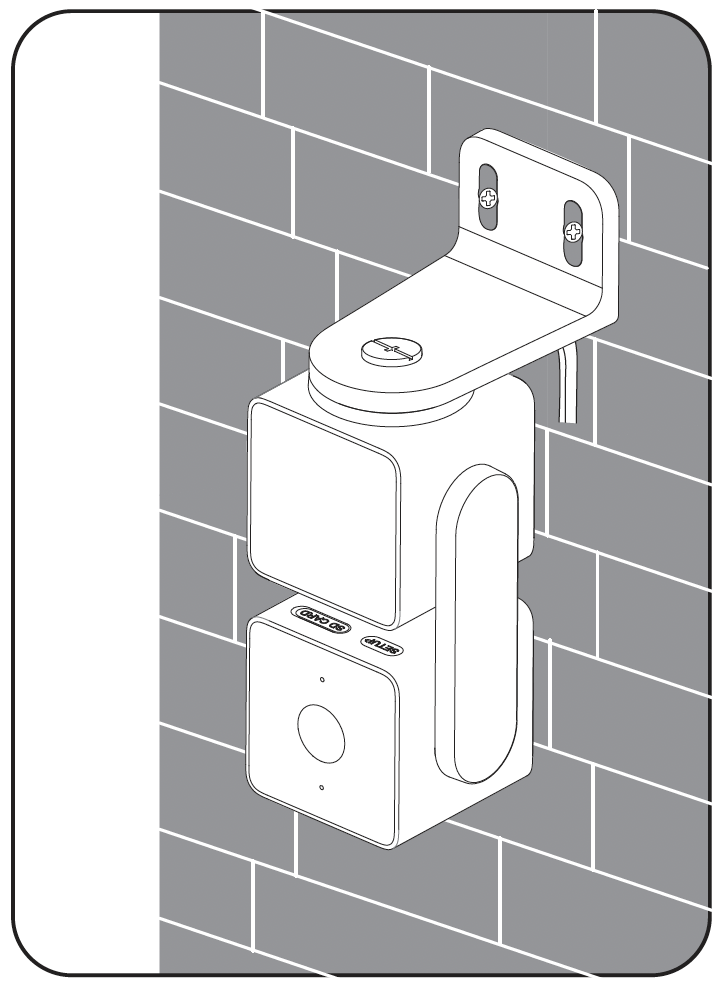

Wyze Cam Pan v3 mounted with Mounting Kit Version B.

* Important: Wyze Cam Pan v3 comes with one of two versions of the Mounting Kit, as shown to the right. The Mounting Kit pictured on the product packaging, and shown above, is Version B.

Please open the kit and confirm which version of the Mounting Bracket you have before proceeding. You will also be prompted in the Wyze app to select the bracket you have before continuing.

Wyze Cam Pan v3 Brackets.png



To mount your Wyze Cam Pan v3: with Version A:

  1. Place the Mounting Bracket included in your Mounting Kit to the wall.
    • Rotate the bracket if you're mounting the camera near the ceiling and want it upside down.
    • Make sure your bracket has at least 150 mm of space above and below it, and 30 mm around.
  2. Mark your drill holes with a pencil.
  3. Use a 6mm drill to drill holes at the pencil marks.
  4. Drill the bracket screws into the wall or anchors.
    • Your bracket screws should be exactly 21 mm apart.
  5. Insert the power cable into the camera, then plug the USB end into the adapter.
    • When powered, the status light on the camera will light up.
  6. Align the hole at the bottom of the camera to the bracket and attach with the included screw.
  7. Hang the bracket from the two screws upside down, like this:
    Version A Mounted.png

To mount your Wyze Cam Pan v3: with Version B:

  1. Place the Mounting Bracket included in your Mounting Kit to the wall.
    • Rotate the bracket if you're mounting the camera near the ceiling and want it upside down.
    • Make sure your bracket has at least 150 mm of space above and below it, and 30 mm around.
  2. Mark your drill holes with a pencil.
  3. Use a 6mm drill to drill holes at the pencil marks.
  4. Drill the bracket screws into the wall or anchors until halfway inserted.
  5. Place the mounting bracket over your screws, and finish drilling in the screws until the bracket is firmly attached to the wall.
  6. Pass the included power cable through the hole in the mounting bracket, and insert the cable into the bottom of your camera.
      • When powered, the status light on the camera will light up.
  7. Using your screwdriver and the binding screw, attach the bottom of your camera the mounting bracket, like this:
    Pan v3 Version B Mounted.png
